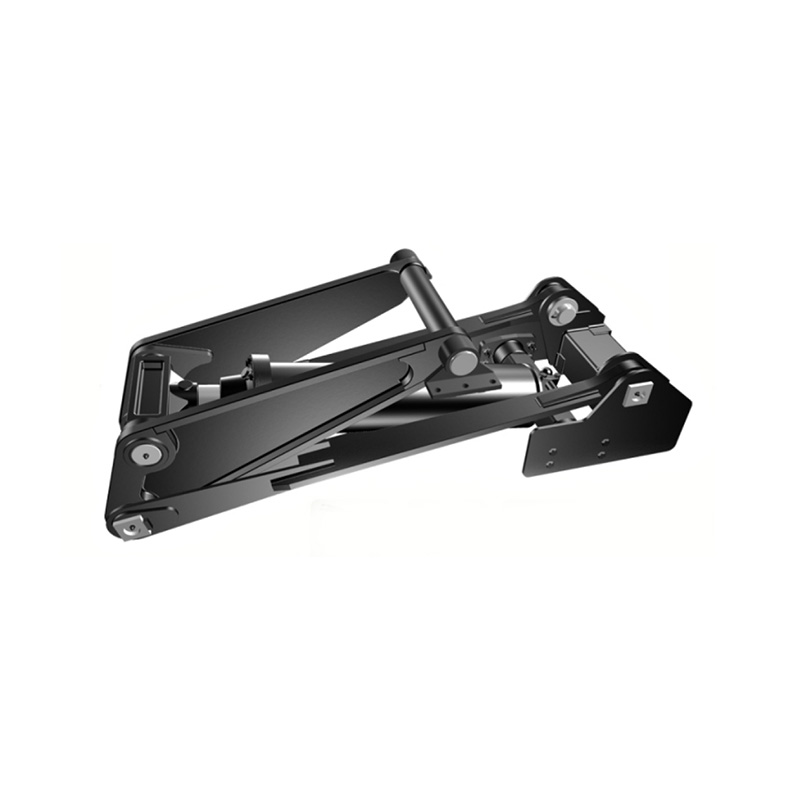

KRM-160S Hydraulic Hoist

The KRM-160S Hydraulic Hoist is a hydraulic hoisting mechanism designed for industrial applications, offering a reliable and powerful solution for lifting and handling heavy loads. This hoist mounting system is suitable for trucks with a gross vehicle weight ranging from 8000 to 11000 kg, with a maximum lifting capacity of up to 20,000 kg. It incorporates a sturdy hydraulic pump and cylinder, along with high-quality structural components, making it ideal for heavy-duty operations that require both durability and control.

Product Advantages
1. Powerful Lifting Capacity
   - The KRM-160S provides robust lifting power with a working pressure of 6.9 MPa, making it capable of handling significant loads with ease.
   - The maximum lifting capacity of up to 20,000 kg ensures that this hoist mounting can manage various heavy-duty applications, making it suitable for industrial and commercial use.
   - Its construction supports high load capacity, reducing operational strain and ensuring efficient task completion.

2. Durability and Reliability
   - Constructed from high-quality materials, the KRM-160S is built to withstand rigorous conditions. Its hydraulic system and structural components are designed for long-lasting performance.
   - The hoist mounting is tested up to a maximum pressure of 20.6 MPa, ensuring it operates safely within a wide range of load conditions.
   - By integrating reliable materials and design, the KRM-160S reduces maintenance needs, leading to lower downtime and extended service life.

3. Precision and Control
   - With a standard revolution rate of 800 rpm and a hydraulic pump (KP-75A/B) discharge volume of 72 ml/rev, the KRM-160S provides smooth and precise lifting control.
   - The cylinder’s inner diameter of 160 mm and stroke length of 561 mm offer optimal control over lifting movements, ensuring accuracy and reducing risks during operations.
   - The precise control features enhance safety by minimizing load swings and providing operators with greater control over heavy loads.

Product Features
1. Compact Yet Sturdy Design
   - Dimensions: With a length of 1434 mm, width of 500 mm, and height of 360 mm, the KRM-160S has a compact footprint, making it suitable for confined spaces without compromising performance.
   - Retracted Cylinder Length: When retracted, the cylinder length measures 940 mm, allowing the hoist mounting to fit within smaller setups and ensuring flexibility in various applications.
   - Weight: At 252 kg, the unit is designed for strength without unnecessary bulk, allowing easy installation and integration with compatible vehicles and equipment.

2. Advanced Hydraulic System
   - High-Pressure Cylinder: The hydraulic cylinder operates at a maximum pressure of 15.7 MPa, providing reliable power for demanding lifting tasks.
   - KP-75A/B Hydraulic Pump: The system includes a high-performance hydraulic pump, enabling efficient fluid flow and contributing to the smooth operation of the hoist.
   - Piston Rod and Cylinder Specifications: The piston rod diameter is 70 mm, with a cylinder diameter of 160 mm, providing a balanced and powerful lift suitable for heavy-duty applications.

3. Flexible Mounting and Capacity Range
   - Adjustable Load Center and Hinge Distances: The mounting structure is flexible, with a distance between the load center and hinge of 1300 mm and a distance between the hinge and between positions of 1400 mm.
   - Rated Lifting Capacity: The hoist mounting supports a rated lifting capacity of 10,000–20,000 kg, providing versatility to handle varying load requirements.
   - Rear Overhang and Body Length Options: With a rear overhang of 600 mm and a body length of 3800 mm, it accommodates different vehicle setups and maximizes lifting efficiency for various applications.

Applications
The KRM-160S Hydraulic Hoist is ideal for applications in industries requiring heavy lifting and reliable handling solutions, including logistics, construction, and transportation. Its robust construction and adaptable design make it suitable for lifting large, heavy materials and equipment, supporting efficient and safe operations across diverse environments.
