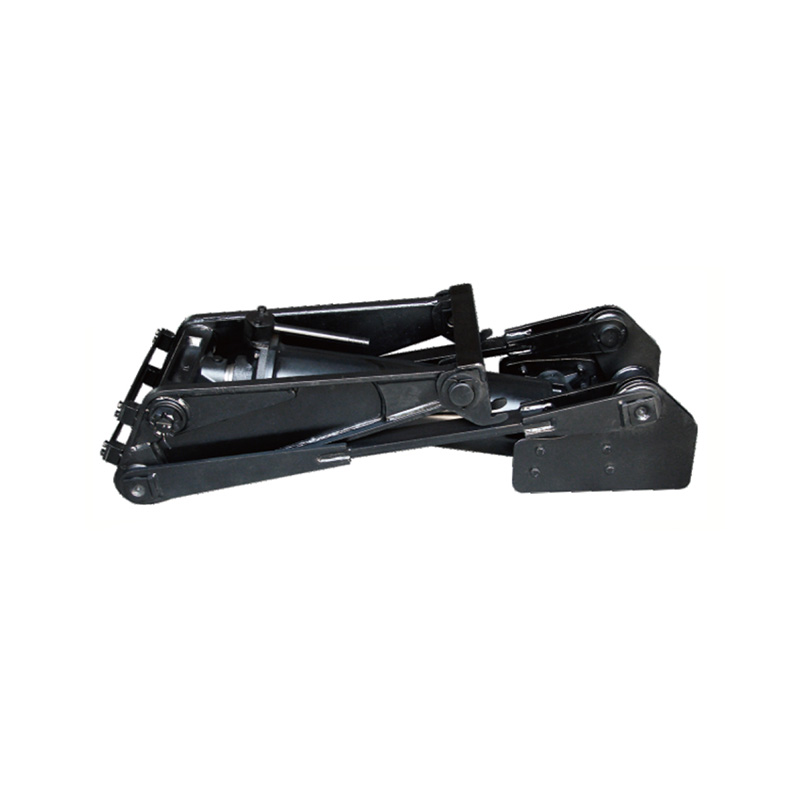

KRM-1670 Hydraulic Hoist

The KRM-1670 Hydraulic Hoist is specifically designed to operate in heavy-duty environments, providing the strength and durability necessary for industrial settings. Its construction includes high-quality materials and components like hydraulic hoses, KP-75A pumps, body hinges, and lever systems, which work together to provide precise and controlled lifting capabilities. The product is compact yet powerful, making it suitable for use with trucks weighing between 8000-11000 kg, and has a rated lifting capacity of 10000-20000 kg.

Product Advantages
1. Enhanced Lifting Power
   - The KRM-1670 has a high working pressure of 6.9 MPa, allowing it to handle significant weights effortlessly.
   - With a piston rod diameter of 70 mm and a cylinder diameter of 160 mm, it provides ample power for heavy-duty applications.
   - Its lifting power ensures efficient load management, reducing operational time and enhancing productivity.

2. Precision and Control
   - Equipped with a hydraulic pump capable of a discharge volume of 72 ml per revolution, the KRM-1670 offers precise control over lifting actions.
   - The standard revolutions reach up to 800 rpm, providing smooth and steady operations for better control.
   - This precision contributes to safety, particularly in applications requiring delicate handling of heavy loads.

3. Durability and Reliability
   - Constructed with high-quality materials, the KRM-1670 is built to withstand rigorous use.
   - Its maximum testing pressure of 20.6 MPa and a maximum allowable load of 160 kg/cm² make it highly reliable under stress.
   - The design of each component ensures long-term functionality, even in harsh industrial environments, minimizing maintenance needs.

Product Features
1. Compact and Space-Efficient Design
   - Dimensions: The KRM-1670 measures 1160 mm in length, 410 mm in width, and 250 mm in height, allowing for a space-efficient setup.
   - Lightweight Construction: Weighing only 172 kg, it’s relatively lightweight for easy installation without compromising strength.
   - Retracted Cylinder Length: The retracted cylinder length of 714 mm makes it compact when not in use, allowing it to fit seamlessly in constrained spaces.

2. Hydraulic Cylinder and Pump Specifications
   - High-Pressure Cylinder: The hydraulic cylinder is designed for a maximum pressure of 15.7 MPa, ensuring powerful lifting capabilities.
   - Advanced Hydraulic Pump: Equipped with a KP-75A pump, the KRM-1670 supports high revolutions and efficient fluid discharge, enhancing lifting speed.
   - Controlled Stroke Length: With a stroke of 230 mm, the hoist mounting allows controlled lifting actions for precision operations.

3. Versatile Mounting and Capacity Options
   - Load Center and Hinge Distances: The mounting structure allows flexible adjustments, with distances between the load center and hinge ranging from 1300 mm to 1100 mm.
   - Rated Lifting Capacity: Designed with a lifting capacity of 10000-20000 kg, it is ideal for handling various loads within its weight specifications.
   - Adjustable Overhang: The body length and rear overhang allow versatile mounting, accommodating different truck configurations and sizes.

Applications
The KRM-1670 Hydraulic Hoist is suited for numerous industrial applications, including construction, logistics, and material handling. Its robust design and high lifting capacity make it ideal for lifting and moving heavy equipment or goods. In logistics, it facilitates efficient loading and unloading, while in construction, it provides the power to lift and position structural components with precision. The compact dimensions and adaptable mounting options make it suitable for diverse installation requirements, offering flexibility in various operational settings.
