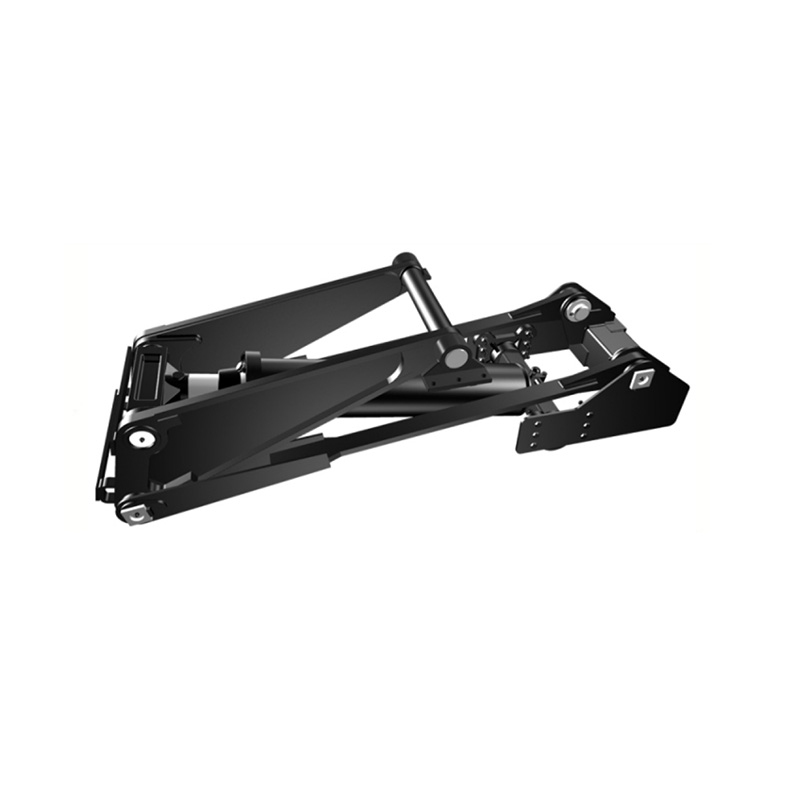

KRM-160C Hydraulic Hoist

The KRM-160C Hydraulic Hoist is a reliable and robust hydraulic lifting solution designed for medium-duty trucks with gross vehicle weights (GVW) ranging from 11,000 to 17,000 kg. Engineered with precision and durability in mind, this hoist mechanism provides consistent lifting performance across multiple applications, including construction, logistics, and waste management. Its compact design ensures efficient integration into vehicle systems, enhancing overall operational effectiveness.

Product Advantages

1. Optimized Hydraulic Efficiency
   - The system operates at a working pressure of 6.9 MPa (70 kgf/cm²), ensuring consistent and controlled lifting operations.
   - The KP-75A/B hydraulic pump delivers a discharge volume of 72 ml/rev, providing sufficient flow for various lifting requirements.

2. Compact and Lightweight Design
   - Measuring 1772 mm in length, 525 mm in width, and 430 mm in height, the KRM-160C is compact enough for seamless installation on trucks.
   - With a weight of only 298 kg, the lightweight construction minimizes the additional load on vehicles without compromising on strength.

3. High Lifting Capacity
   - The hoist has a rated lifting capacity of 10,000–20,000 kg, offering reliable support for heavy-duty tasks.
   - Its maximum designed lifting capacity reaches 32,100 kg, ensuring performance under demanding conditions.

Product Features

1. Hydraulic Cylinder Specifications
   - Inner Diameter and Stroke: The cylinder features an inner diameter of 160 mm and a stroke length of 747 mm, enabling effective lifting reach.
   - Piston Rod Dimensions: The piston rod has a diameter of 70 mm, ensuring enhanced structural integrity during operation.
   - Compact Retracted Length: When retracted, the cylinder measures 1075 mm (eye-to-eye), making it ideal for compact spaces.

2. High-Performance Hydraulic Pump
   - Optimal Revolutions: The pump operates at 800 rpm, maintaining a steady and efficient flow rate.
   - Pressure Tolerance: With a maximum testing pressure of 20.6 MPa (210 kgf/cm²), the system is designed to withstand high-intensity workloads while maintaining safety.

3. Ease of Installation and Maintenance
   - Equipped with essential components like hydraulic hoses, body hinges, and oil pipe connections, the hoist simplifies the installation process.
   - Modular parts, including levers and hinge pin shafts, ensure convenient maintenance and part replacements.

4. Enhanced Compatibility
   - The mounting fits trucks with body lengths of 4500 mm and rear overhangs of 1500 mm, ensuring versatility across various truck models.
   - The hoist accommodates trunnion distances of 2050 mm, making it adaptable to different operational setups.

Product Applications

The KRM-160C Hydraulic Hoist is suitable for a wide range of industries and use cases:
- Construction and Infrastructure: Perfect for lifting heavy construction materials or equipment, ensuring seamless project execution.
- Waste Management: Ideal for mounting on trucks used for loading and unloading waste bins, providing efficiency in urban waste collection.
- Logistics and Transport: Ensures reliable loading and unloading of goods, optimizing transportation workflows.
- Agriculture: Capable of handling large loads such as produce, machinery, or agricultural supplies with ease.

The KRM-160C is designed to provide consistent performance, reliability, and adaptability across various industries, making it a dependable choice for lifting and hauling tasks.
