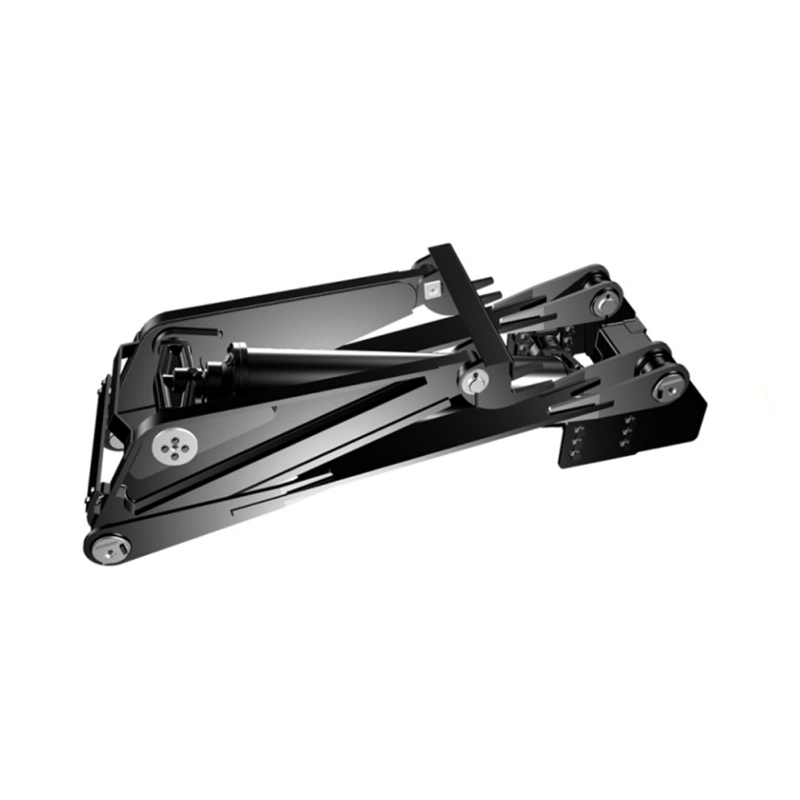

KRM-201 Hydraulic Hoist

The KRM-201 Hydraulic Hoist is a reliable and robust lifting mechanism designed to meet the demands of heavy-duty applications. With a combination of precision engineering and durable materials, it offers exceptional lifting capabilities, making it suitable for use with trucks of varying capacities. Its innovative hydraulic cylinder and pump integration ensure efficiency and reliability in diverse operational scenarios.

Advantages of the KRM-201 Hydraulic Hoist

1. High Efficiency
   - The hydraulic system is optimized for a working pressure of 10.3 MPa (105 kgf/cm²), providing smooth and consistent lifting operations.
   - A discharge volume of 136 ml/rev ensures rapid hydraulic response during operation.

2. Enhanced Durability
   - The robust piston rod with a diameter of 100 mm offers superior strength and resilience under heavy loads.
   - High-quality materials ensure durability, reducing maintenance and replacement costs.

3. Versatile Compatibility
   - Compatible with trucks ranging from 25,000 kg to 32,000 kg gross vehicle weight (G.V.W.).
   - Suitable for varying truck body lengths up to 6,000 mm and rear overhang lengths of 1,000 mm.

Features of the KRM-201 Hydraulic Hoist

1. Precision Hydraulic Cylinder
   - Inner Diameter: The 200 mm cylinder diameter ensures a balanced and powerful lifting force.
   - Stroke Length: A stroke of 878 mm allows for extended lifting heights, enhancing adaptability.
   - Retracted Cylinder Length: The compact 1211 mm retracted length ensures easy integration with various truck configurations.

2. Optimized Hydraulic Pump System
   - Model Variants: The pump is available in KP-1403A and KP-1405A versions, catering to different operational needs.
   - Testing Pressure: Designed for a maximum testing pressure of 20.6 MPa (210 kgf/cm²), ensuring system safety and reliability.
   - Lightweight Design: The pump's 37 kg weight minimizes impact on vehicle payload capacity.

3. Exceptional Lifting Capacity
   - Rated Capacity: Supports loads ranging from 15,000 kg to 30,000 kg, ensuring flexibility for diverse applications.
   - Maximum Designed Capacity: With a maximum lifting capacity of 50,200 kg at a 48° tilt, it handles demanding operations effortlessly.

4. Compact and Efficient Design
   - Dimensions: Compact dimensions (1886 mm length, 590 mm width, and 476 mm height) provide seamless integration without compromising vehicle aesthetics.
   - Weight: At just 515 kg, the hoist mounting optimizes overall vehicle balance.

5. Customizable Installation Options
   - Adjustable Distance: The design accommodates various truck setups with a load center-to-hinge distance of 2000 mm and a trunnion-to-hinge distance of 2630 mm.
   - Flexible Truck Applications: Ideal for both medium and heavy-duty truck configurations.

Applications of the KRM-201 Hydraulic Hoist

The KRM-201 Hydraulic Hoist is widely applicable across industries requiring reliable lifting mechanisms. Common uses include:
- Construction and Infrastructure Projects: Ideal for transporting heavy building materials such as concrete and steel.
- Waste Management: Effectively lifts and empties heavy containers in municipal waste disposal operations.
- Agricultural Operations: Suitable for hauling bulk loads like grains, soil, and farming equipment.
- Logistics and Freight: Used in warehouses and transportation systems for heavy cargo handling.

This versatile and efficient hoist mounting mechanism continues to set a standard for durability and performance across diverse industries.
