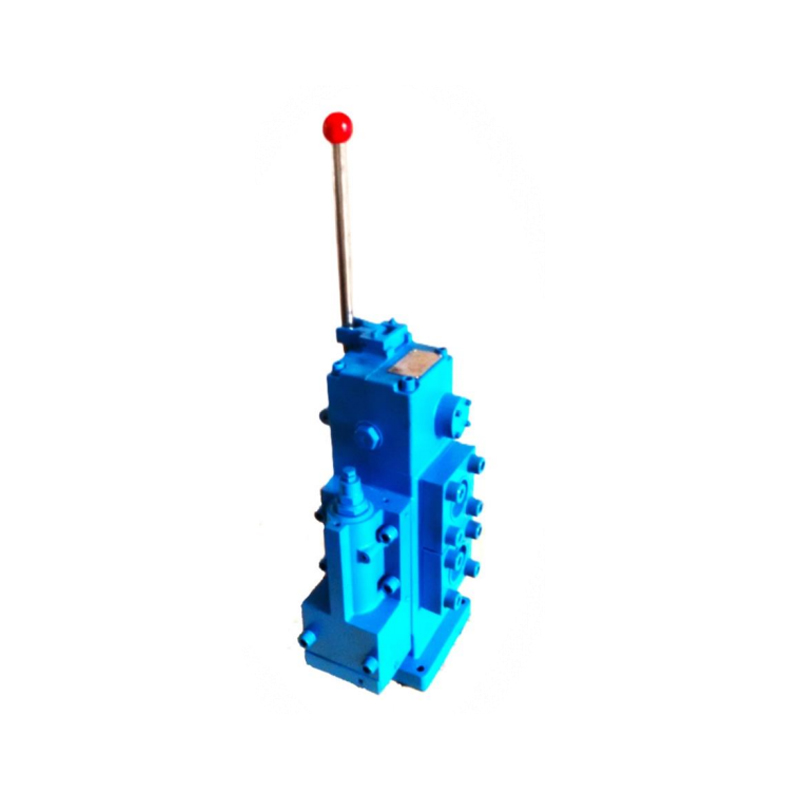

G20/G25/G32/G40 Marine Manual Proportional Flow Composite Valve

The G20, G25, G32, and G40 Marine Manual Proportional Flow Composite Valves are advanced three-position, four-way directional valves designed for marine and hydraulic control systems. These valves are equipped with pressure compensation, flow proportional adjustment, and protection features, which ensure smooth and precise operation in various hydraulic applications. The valve’s operation is synchronized with the flow adjustment mechanism, enabling infinitely variable speed control and excellent shifting and speed regulation performance. Constructed from high-strength spheroidal graphite cast iron, these valves are known for their durability, ease of operation, and long service life. They are widely used in marine machinery and other mechanical hydraulic control systems.

Product Advantages

1. Pressure Compensation
   - The G-series valves include an integrated pressure compensation function, which ensures that flow remains constant, even as system pressure changes. This feature is crucial in maintaining stable operation across different load conditions, improving system efficiency and reliability.

2. Flow Proportional Adjustment
   - These valves offer precise flow control, allowing users to adjust the flow rate proportionally to the operator’s input. The synchronization between the valve handle and the flow adjustment mechanism ensures smooth and continuous flow regulation, contributing to consistent performance.

3. Protection Mechanisms
   - Built-in protective features safeguard the valve and hydraulic system from damage caused by unexpected pressure spikes or flow inconsistencies. These protective elements help prolong the valve’s lifespan and prevent costly downtime.

4. Ease of Operation
   - The manual control handle is ergonomically designed, offering users a straightforward and intuitive interface. With synchronized adjustments, operators can effortlessly control flow rates and switching functions without the need for complex training or excessive effort.

5. Durability and Longevity
   - Made from high-strength spheroidal graphite cast iron, the valve body is resistant to wear and tear. This material choice enhances the valve’s strength and durability, making it ideal for long-term use in challenging marine environments.

Product Features

1. Three-Position, Four-Way Directional Valve Design
   - The G-series valves are designed as three-position, four-way directional valves, making them versatile and suitable for various hydraulic control applications. The configuration allows for multiple operational states, enhancing the system's flexibility.

2. Infinite Speed Adjustment
   - With the manual proportional control, the G-series valves allow for an infinite range of speed adjustments. Operators can fine-tune the system’s flow rate for precise movement control, whether it’s for equipment operation or ship steering.

3. High-Strength Spheroidal Graphite Cast Iron Construction
   - The high-quality cast iron construction offers outstanding mechanical strength and resistance to corrosion, making these valves ideal for use in marine environments where reliability and endurance are paramount.

4. Reliable Shifting and Speed Regulation
   - The valves are equipped with a robust shifting mechanism that ensures smooth and reliable switching between different flow states. This results in a stable performance with excellent speed regulation, even under fluctuating load conditions.

5. Compact and Efficient Design
   - The design of the G-series valves is compact, allowing them to be integrated into tight spaces within marine and hydraulic systems. Despite their compact size, these valves do not compromise performance or durability.

These features and advantages make the G20, G25, G32, and G40 Marine Manual Proportional Flow Composite Valves a reliable choice for a wide range of hydraulic control applications across various industries.
